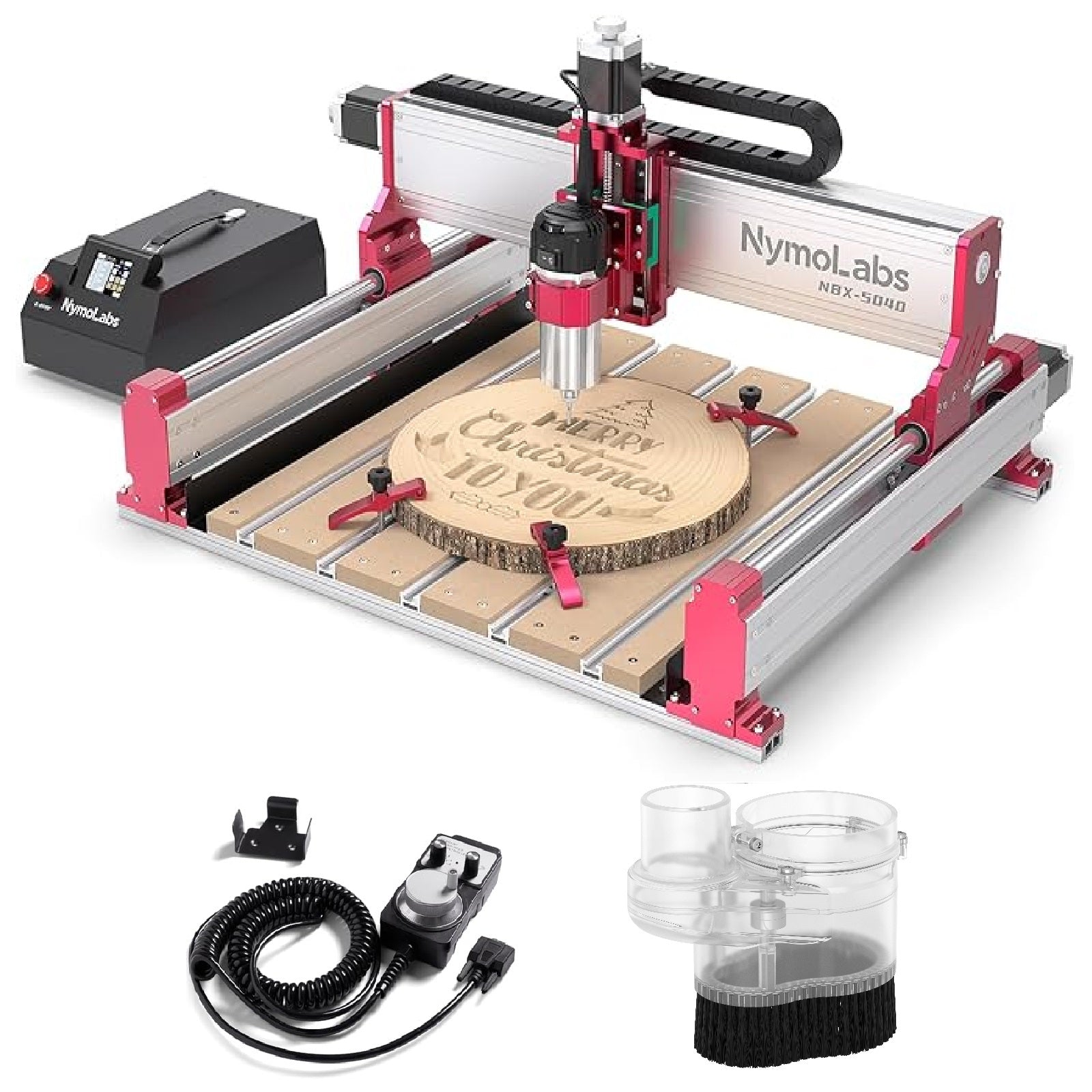

[Bundle Discount]NBX-5040+MPG+DSR65

Sale price
$1,399.00
List price
$1,623.98
You save
-$224.98 (14%)
Ship to:United States/110V Version
Warehouse:From Local Warehouse(8-10day)
Specifications
Model  NBX-5040
Work Area 508*408*97mm
Overall Dimensions/KGS 846*726*461mm/45kg
Spindle Motor SP7AJ-ER11 120V 710W customized spindle 7000-30000RPM stepless adjustable; Knob adjustment
3-Axis Stepper Motors/Stepper Driver NEMA23 76mm 1.89N.m / DM542
Max Speed 4800mm/min
Rails Size & Type X*1-Z axis: HG15 linear guide; Y axis: dual 20mm Steel HSS linear tubes
Ball Screws Size & Type X-Y axis: 1605 ball screw; Z axis: 1204 ball screw
Access Accessories  Comes with Offline Controller ; MPG & 4th Axis & Dust Shoe(Purchase Yourself)
Supported Extension Ports: Z Probe / Laser Module/ 12V, 24V Power Interface
X Y Z Limit Switches/Emergency Stop


About this item:

  • NBX-5040: We replaced the linear rails on the NBS-6040's Y module with dual 20mm Steel HSS Linear tubes to create a cost-effective, productive CNC Machine. We took everything we could from the NBS-6040 and applied it to the new NBX-5040. In our testing, the NBX-5040 gets you most of the performance of NBS-6040, at a big savings.
  • NymoLabs Custom-made 710W Router: The NBX-5040 features the Self-developed Trim Router as a spindle, a Second-to-none move in the market. Its soft start, and constant current drive features, make the spindle RPM slow to fast without stalling, ranging from 7000 to 30000 adjustable. ER11 Collet Gripping Range: 1-8mm, 1/4", 1/8".
  • Modular Design: The pre-assembled modular design makes the 20-minute installation possible, with just a few installation steps and wiring of electronics before starting your projects. Now with a larger working area (20.02" x 16.22" x 3.83"), 710W trim router spindle, The NBX-5040 CNC router is ready for all your projects, whether you're just going to use it occasionally in your garage, or if you're going to run it all day, every day.
  • Based on Open-source Grbl v1.1: The NBX-5040 CNC router features the driver with 32-bit chips, making the pulse frequency up to 80 KHZ. Adds 4-axis linkage motion, MPG, offline control, 3-pin laser port, air pump, and other extended functions. It also supports transforming the code files from offline controller to local memory to engraving stabler.
  • Create a New and Friendly Maker Ecology: In order to give makers a better experience, we reserved a series of expansion function ports when designing, including the fourth-axis expansion (four-axis linkage), MPG, Z probe tool set, air pump port, lighting port, air blowing, and dust boot placement,.etc. Which will be listed separately in the coming next!
  • Advanced Stepper Motor Driver DM542: Featuring the DM542, the NymoLabs CNC 5040 has the advantages of smooth motor movements without losing steps, current adjustment capability for precise control, and overheat protection to ensure device safety which is ideal for CNC machine applications.
  • TFT Touchscreen Offline Controller: With a 2.8” touchscreen display, the 5040 offline controller makes controlling your engraving machine simple and convenient. Users can operate 5040 manually, or put it on the Electric Controller Box reserved placement.
  • Tips: The ER-11 Router is made for use in CNC machines so we skip all of the bases and jigs that won't be used anyway. The 1/4" collet is Not included in the package.
  • Router Gear and Rotation Speed (RPM)
     Gear Rotating speed (RPM)
    1 6800±10%
    2 13500±10%
    3 19500±10%
    4 24000±10%
    5 28500±10%
    6 30000±10%
Shipping Information

Thank you for choosing NymoLabs! Please review the below information regarding the processing and delivery of your orders.

Order Confirmation

Upon placing an order, you will receive an order confirmation via email. This confirmation serves as acknowledgment that we have received your order. A notification email containing a tracking number will be sent to you once the order is shipped.

Order Processing Time

It takes 2 business days for us to process your order and prepare it for shipment. Please note that this processing time is in addition to the time it takes for the actual delivery.

Shipping Area

For orders within the United States, we offer free shipping on orders over $29. For orders under $29, a flat shipping fee of $4.9 will be applied. For other regions, such as the UK, Europe, Japan, and Australia, shipping and customs fees will apply, which are included in the final price. If your country is not listed, you can contact us at support@nymolabs.com to get the latest quote.

Delivery Timeframe

Our standard delivery timeframe is 8-10 business days. Please keep in mind that this estimate may vary based on your location and any unforeseen circumstances that may affect the shipping carrier.

Address Changes and Order Cancellation:

If you need to make changes to your order, please contact our support team immediately via email. We will do our best to assist you with any necessary adjustments. However, once your order has been shipped, we are unable to change the shipping address or cancel the order.

We appreciate your understanding and cooperation in adhering to our shipping policy. If you have any further questions or concerns, please don't hesitate to reach out to our customer support team at support@nymolabs.com

Contact Us

Thank you for your interest in NymoLabs! We value your feedback and inquiries. Please feel free to reach out to us using the contact form below.Our dedicated support team is ready to help!

If you don't receive a response from us within 24 hours, it may be due to an incorrect email address or our reply being identified as spam. You can leave us a message via the online chat tool or contact us directly at support@nymolabs.com.



High Performance Spindle

Its soft start, and constant current drive features, make the spindle RPM slow to fast without stalling.

6-speed Adjustable

Adjustable from 7000 to 30,000 RPM for a variety of materials.

Mastering Ranout in Precision Machining

Specially customized for CNC engraving machines, the tool runout is within 0.05mm, ensuring engraving accuracy.

Heat Dissipation Vents Design

Top vents are designed for high-efficiency heat diffusion to ensure the machine runs better.
